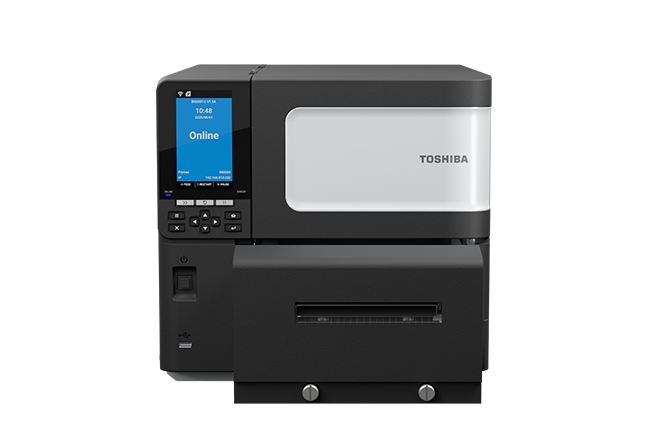

Premium wide-web industrial printer

The BX610T is the powerhouse for 24/7 operation in demanding industrial environments where wide-format labelling is essential.

Key Features:

  • Exceptional reliability with Toshiba long-life  print heads for continuous operation.
  • Optimised total cost of ownership with near-edge printing and optional ribbon save technology.
  • Supports extra-long ribbons up to 800 m,  minimising operator intervention.
  • Designed for pallet labelling, automotive part identification and special manufacturing applications requiring 6-inch wide labels.


Key Specifications

  BX610T
Printing Method Direct thermal / thermal transfer
Print Head Type/Alignment Near edge / Centred
Resolution GS02: 203 dpi (8 dots/mm)
TS02: 305 dpi (12 dots/mm)
Memory 1 GB RAM, 8 GB ROM
Interface USB 2.0 HS (USB host/HID support), LAN 10/100/1000 BaseT, RS232(1), WLAN 802.11ac/a/b/g/n/ax(1), Bluetooth 5.2(1), Expansion I/O(1)
Print Width/Length 47–162 mm / Batch: 6–1,498 mm, Cut: 21.4–1,498 mm, Peel-off 21.4–1,496 mm
Print Speed Max. 305 mm/second (12 ips)
Dimensions & Weight 331 x 460 x 310 mm, 19.6 kg
Standard Ribbon Lengths 600 m, 800 m
Emulations Auto-detection of TPCL, ZPL II, DPL, SBPL, IPL, PDF
Options Disc cutter, Rotary cutter, Peel-off, Ribbon save (standard), External media guide, Serial RS232, WLAN + Bluetooth, Expansion I/O, Real time clock (standard), Cover damper (standard)
