Efficient labelling, lower costs

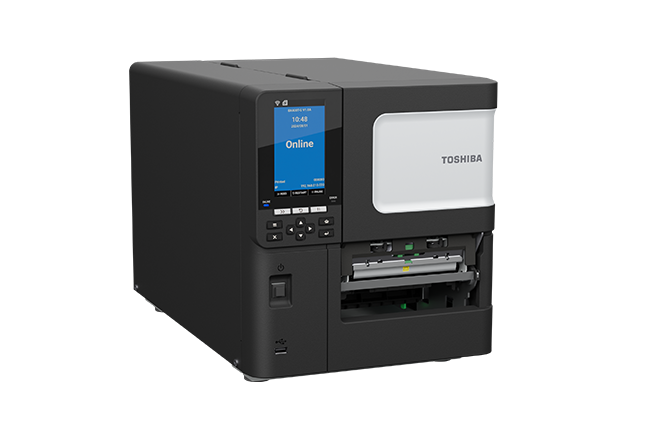

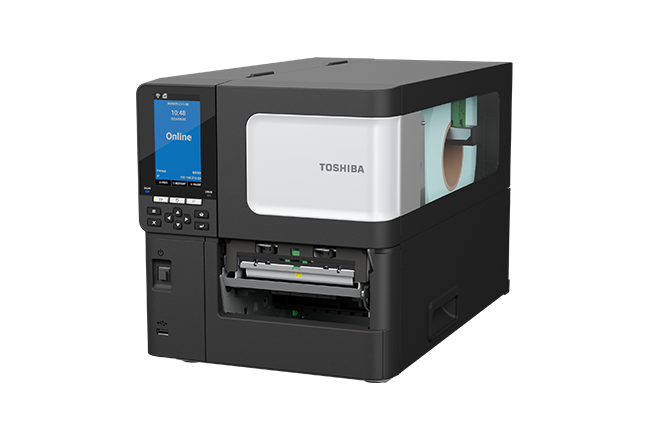

The BX420D is a high-performance direct thermal printer built for fast, cost-effective labelling. Designed for short-life applications like shipping and retail, it eliminates ribbon use—reducing consumable costs and simplifying maintenance. Powered by A-BRID technology, it offers real-time PDF support and seamless system integration, making it ideal for logistics, retail, and warehouse operations. It’s the smart choice for businesses focused on efficiency and savings.

Key Features:

  • Direct thermal printing – no ribbon, lower total cost of ownership
  • Optimised for short-term labels, perfect for shipping, retail, and logistics
  • A-BRID technology delivers fast, intelligent performance with real-time PDF support
  • Seamless integration into existing systems with auto-emulation
  • Cloud-ready with remote management and monitoring



Key Specifications

  BX420D-GS
Printing Method Direct thermal
Print Head Type/Alignment Flat Head; Centre aligned
Resolution 203 dpi
Memory 1 GB RAM, 8 GB ROM
Interface USB 2.0, Ethernet
Print Width/Length 111 mm / 1496 mm
Print Speed 12 ips (305 mm/sec)
Dimensions & Weight 310 (H) x 278 (W) x 460 (D) mm, 16.4 kg
Standard Ribbon Lengths N/A
Emulations Auto-detection of TPCL, ZPL II,DPL, SBPL, PDF
Interface Options/Options Serial, Wireless LAN, RTC, USB 2.0 HS (USB host/ HID support), Disc Cutter, Peel-off & internal rewinder, Expansion I/O, External media guide
