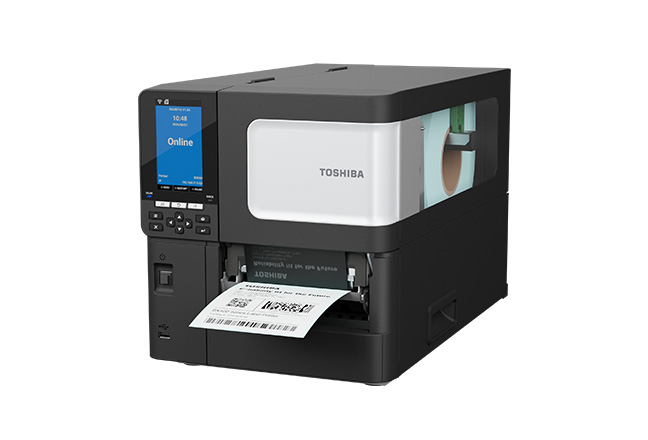

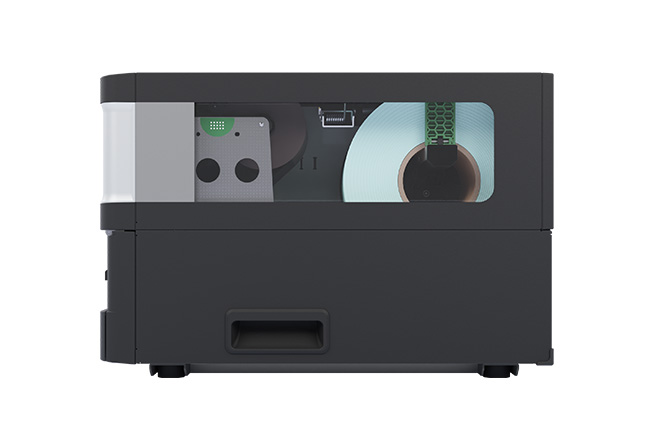

The BX410T series boasts a powerful dual-core CPU that drives Toshiba’s revolutionary A-BRID operating system. It provides smart, cloud-based intelligence that keeps your operation seamless, even in the most demanding applications. The BX410T industrial printer series – where superior hardware meets innovative technology.
Key Features
| BX410T-GS02 | BX410T-TS02 | |
| Printing Method | Direct thermal / thermal transfer | Direct thermal / thermal transfer |
| Print Head Type/Alignment | Near edge | Near edge |
| Resolution | 203 dpi (8 dots/mm) | 305 dpi (11.8 dots/mm) |
| Interface | Full colour LCD, 2x LED, 11 x key | Full colour LCD, 2x LED, 11 x key |
| Max. Print Width | 104 mm | 104 mm |
| Print Length | Batch: 6–1,496 mm Cut: 21.4–1,492 mm Peel-off: 21.4–1,496 mm |
Batch: 6–1,496 mm Cut: 21.4–1,492 mm Peel-off: 21.4–1,496 mm |
| Max. Print Speed | 356 mm/second (14 ips) | 356 mm/second (14 ips) |
| Dimensions & Weight | 278 x 460 x 310 mm; 17 kg | 278 x 460 x 310 mm; 17 kg |
| Ribbon | Ribbon width: max. 112 mm Max. ribbon length 600 m, 800 m |
Ribbon width: max. 112 mm Max. ribbon length 600 m, 800 m |
| Emulations | Auto-detection of TPCL, ZPL II, DPL, SBPL, PDF | Auto-detection of TPCL, ZPL II, DPL, SBPL, PDF |
| Interface | USB 2.0 HS (USB host/HID support), LAN 10/100/1000 BaseT, RS2321), WLAN 802.11ac/a/b/g/n/ax1), Expansion I/O1) |
USB 2.0 HS (USB host/HID support), LAN 10/100/1000 BaseT, RS2321), WLAN 802.11ac/a/b/g/n/ax1), Expansion I/O1) |
| Options | Disc cutter, Rotary cutter, Peel-off module, Ribbon save module, External media guide, RS232, Wireless LAN, EX I/O, UHF RFID kit, HF RFID kit, Real time clock | Disc cutter, Rotary cutter, Peel-off module, Ribbon save module, External media guide, RS232, Wireless LAN, EX I/O, UHF RFID kit, HF RFID kit, Real time clock |
