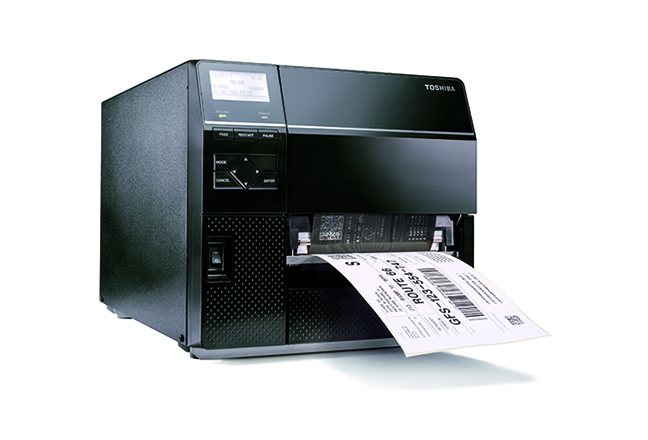

Meeting the demands of the wide-web printing marketplace

The B-EX6 series combines market leading technology with usability. Performance and functionality to meet the demands of the wide-web printing marketplace, designed with features and options to offer the lowest cost of ownership; including an extended long-life print head; Toshiba’s unique ribbon save mode and an 800 m ribbon, to improve efficiencies and ultimately reduce costs over the life of the printer.

Key Specifications

Printing Method Direct thermal/Thermal transfer
Print Head Type/alignment Flat head; Centred
Resolution 203/305 dpi (8/12 dots/mm)
Interface LAN; USB
Print Width/Print Length 160 mm ; 1498 mm
Print Speed 76/127/203/254/305 mm/second (3/5/8/10/12 ips)
Dimensions  & Weight 331 x 460 x 310 mm, 20 kg
Standard Ribbon Lengths A full range of qualities and widths for all applications (Max 800 m)
Emulations ZPL; DPL; BCI
Interface Options/Options Disc cutter, Peel-off module, Fan fold guide, RS232, Centronics, Wireless LAN, EX I/O
