Increase the efficiency of your production workflows

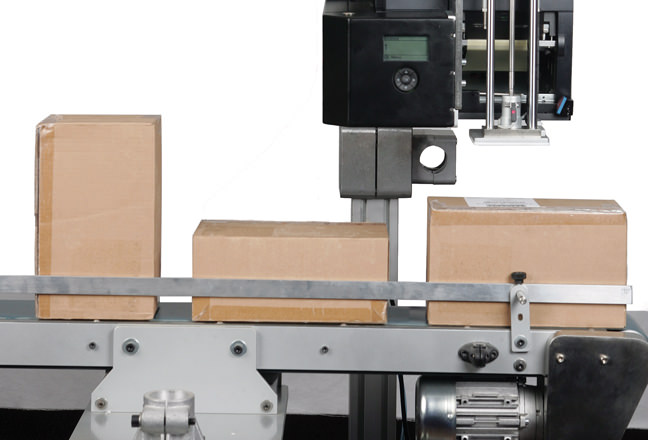

The APLEX4/6 label applicators are low cost, automatic label print and apply systems that combine high performance and cost effectiveness. Suitable for a wide variety of industrial and manufacturing based environments due to their design, performance, and low cost of ownership. The APLEX4/6 are designed for use alongside the B-EX4T/B-EX6T series of industrial printers, to enable simple integration into any production line. These truly ‘plug and play’ solutions can handle production levels of up to 30 labels per minute and are available in resolutions of 200, 300 and 600dpi (APLEX4 only).The APLEX series is designed to support all types of industrial environments, adapting easily to existing production lines.

Key Specifications

  APLEX4 APLEX6
Dimensions 705 (H) x 364 (W) x 585 (D) mm 705 (H) x 414 (W) x 675 (D) mm (Depth with 148 x 200mm pad installed)
Interface USB 2.0, Ethernet USB 2.0, Ethernet
Network Tool SNMP SNMP
Application Method Direct tamp / Tamp blow (stationary or moving carton) Direct tamp / Tamp blow (stationary or moving carton)
Label Application Up to 30 labels/min. Min.: 25x25 mm - Max.: 116x200 mm (Ask for special applications Up to 30 labels/min. Min.: 25x25 mm - Max.: 148 x 200 mm (Ask for special applications
Piston Stroke Applicator Max. 400 mm - useful 250 mm Auto height detection - Package flexibility (variable height carton / product) Max. 400 mm - useful 250 mm Auto height detection / Proximity (with Option)- Package flexibility (variable height carton / product)
Working Modes Print+Apply / Print+Wait up/down +Apply Print+Apply / Print+Wait up/down +Apply
Air Pressure 4-6 bars / tube Ø8 mm, includes internal air filter 4-6 bars / tube Ø8 mm, includes internal air filter
In/Out Signals Print / Apply / Inhibition / Test button / Ready / Error - status light (option) / Working Print / Apply / Inhibition / Test button / Ready / Error - status light (option) / Working
Security Signals Perimeter / Presence of hand (option) Perimeter / Presence of hand (option)
Std. Fixing System Tube Ø50 mm diameter Tube Ø50 mm diameter
Optional Interface Parallel, serial, wireless LAN, RTC & USB host Parallel, serial, wireless LAN, RTC & USB host
New Options   Proximity Sensor / Vacuum Sensor / Column Regulation
